Jacksonville Toyota Tacoma Four-Door Audio Upgrade

Each new day brings amazing challenges and opportunities here at Audio Designs & Custom Graphics. We have customers who come to us from all over Florida. Recently, a new customer from right here in Jacksonville asked about upgrading his 2014 Toyota Tacoma four-door audio system.

System Design Consultation

As with all of our customers, we started the process with a meeting to better understand his goals for the system. It became apparent that he wanted great sound in his truck, but didn’t wish to alter the appearance too much. This is a common request and, thanks to our training and experience, something that we can deliver with impressive results.

Factory Integration For A Stealth Look

Adapter plates were fabricated to fit the round Hertz speaker into the oval factory opening.

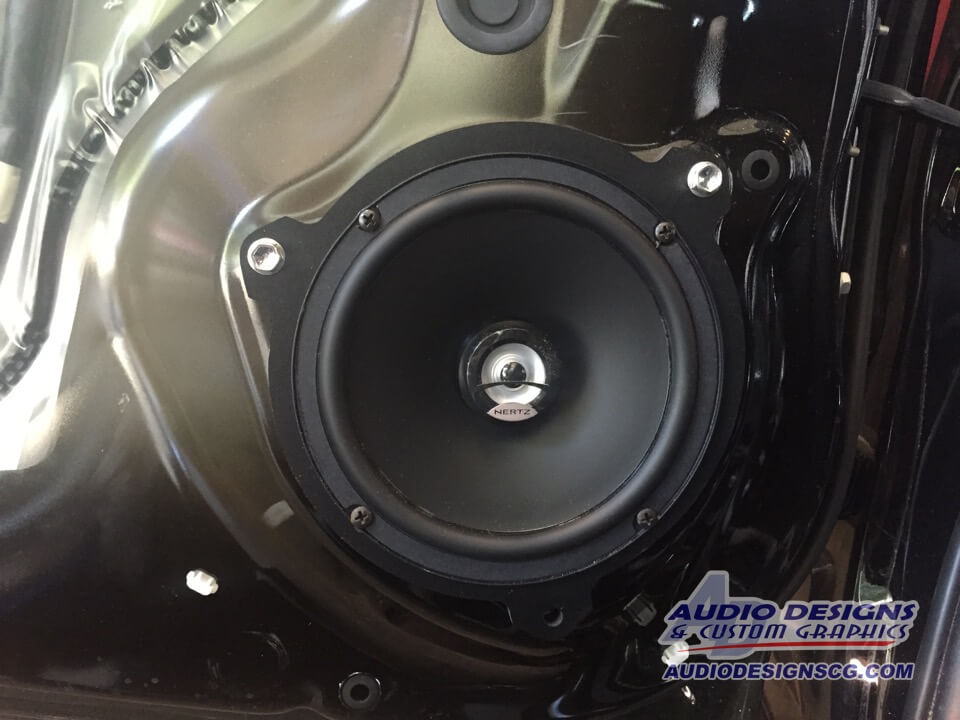

The rear doors also got a pair of Hertz Dieci speakers, also installed with custom adapter plates.

After speaking with the customer and looking at various options, we decided to keep the factory source unit in the truck. It had all the features he needed, and it left room in his budget for more focus on the subwoofer system.

The new system is powered by a pair of compact Hertz amplifiers. We mounted a Hertz HCP 4D amplifier under the driver’s seat. We installed an HCP 1D subwoofer amplifier in the same location on the passenger side of the vehicle. The four-channel amp powers two pairs of Hertz speakers. The front doors are home to a set of DSK 165.3 component speakers and we mounted a set of acoustically matching DXC165.3 coaxial speakers in the rear doors. Toyota uses oval speakers in the factory system, so we created a set of custom speaker-mounting adapters out of expanded PVC that allowed the 6-1/2” components to fit securely. We included FAST foam rings to seal the speakers against the factory door panels.

Amazing Audiomobile Subwoofer Enclosure

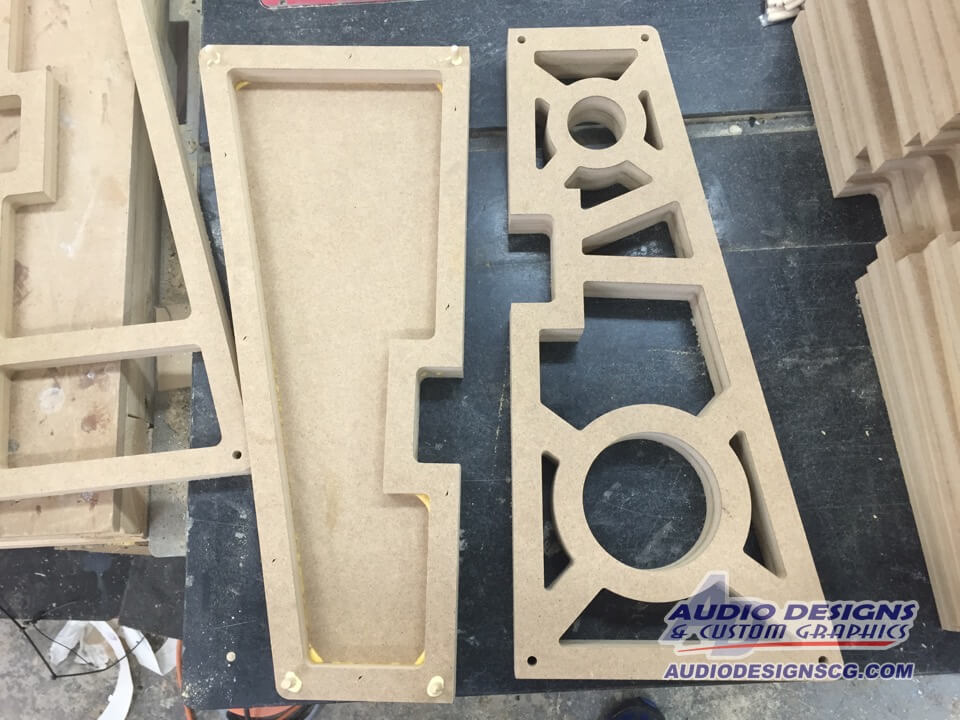

Just a few of the pieces that form this custom enclosure. The intricate piece on the right is a brace to increase the rigidity of the enclosure.

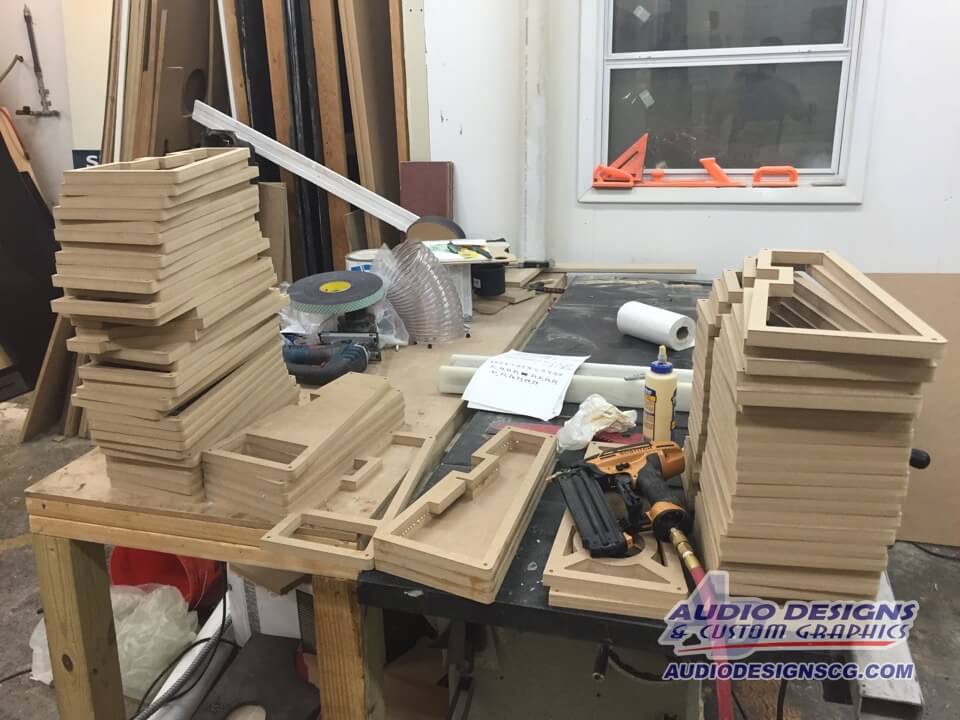

The HUGE stack of pieces that will form this enclosure.

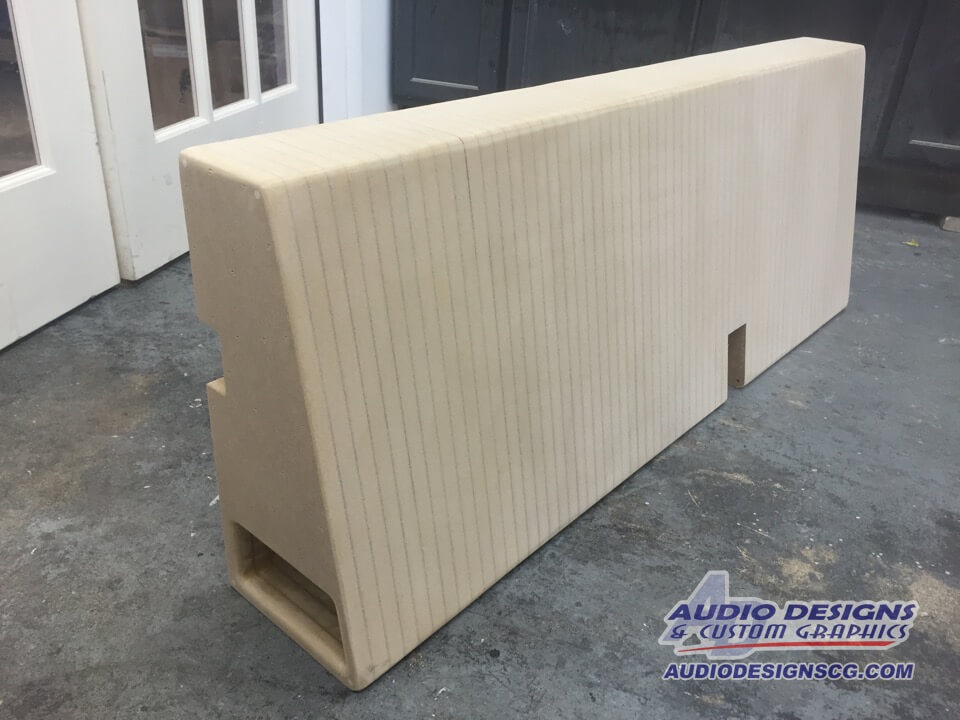

With all of the pieces compiled, the resulting enclosure will fit behind the rear seat and provide plenty of low-end output.

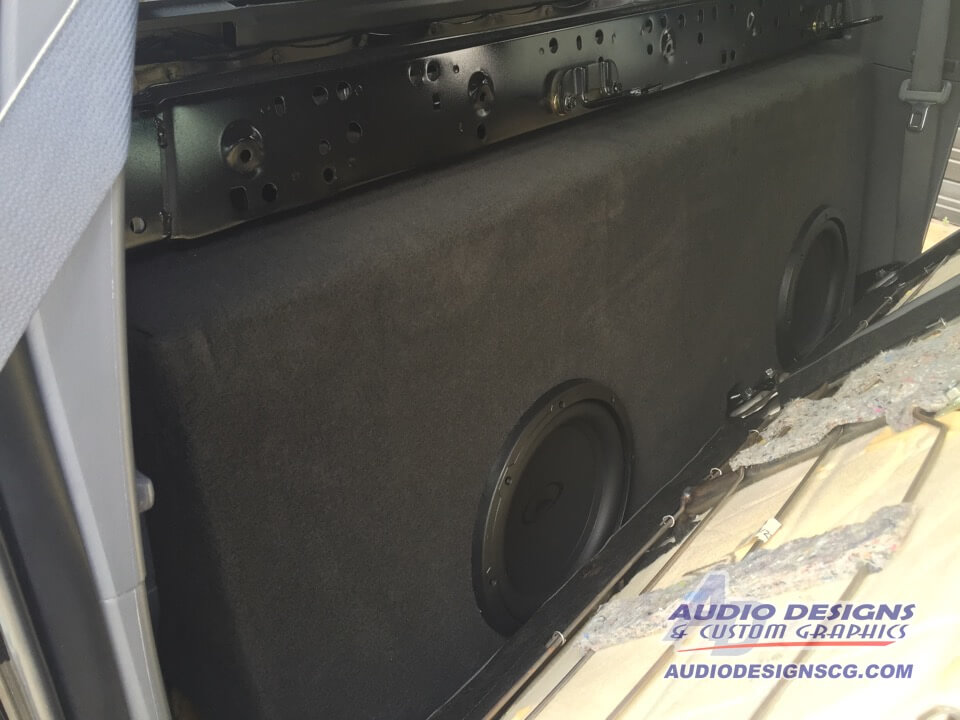

The finished enclosure tucks neatly behind the rear seat.

This customer wanted excellent bass response from his new system. Three criteria had to be considered to achieve this goal: a quality amplifier, a well-designed enclosure and great subwoofers. Hertz amplifiers produce lots of clean power for whatever speakers we connect to them. We chose a pair of Audiomobile GTS Series 2110 subwoofers for this system. These subwoofers provide tight, musical bass from minuscule enclosures. Finally, we constructed a vented Stack Fab-style enclosure that spans the entire rear of the truck interior. We bonded more than 60 custom cut layers of premium MDF together to create an extremely stable enclosure. The design includes internal bracing and a large vent for improved low-frequency output and efficiency. We removed the plastic panels from the back of the rear seats to further improve the bass response in the vehicle.

Extensive Time Was Spent Tuning This Toyota Tacoma Four-Door Audio System For Maximum Performance

Our standard process here at Audio Designs and Custom Graphics is to complete each installation with our detailed system-tuning process and, subsequently, a comprehensive listening test. The process includes using an oscilloscope and Distortion Detector to confirm that each amplifier is configured correctly for maximum system performance and reliability.

Another Happy Client!

If you ask anyone at Audio Designs & Custom Graphics what they like best about building great audio systems, they will tell you it is watching the first reaction from the client. When they turn it up for the first time and that smile sweeps across their face, it makes all worthwhile. You see, we are passionate about what we do.

This customer was thrilled with the results! The system plays loud and remains clear and detailed, even at high volume levels. The customer loved that the whole system was invisible from the outside of the vehicle.
